Diameter: Multi-jet Water Meter: DN15-DN50
Woltman Water Meter: DN40-DN600
Flow Range: R80; R100; R160
Material: Cast iron; Brass (Only for multi-jet water meter); SS304; ABS (Only for multi-jet water meter)
Output: LoRa; NB-IoT; GPRS; m-BUS; RS485
Accuracy: ±2.0%; ±1.0%
Pressure: DN10/16/25; ANSI 150/300
Connection: Thread (NPT/G thread); Flange (National standard flange, ANSI)
Installation: Horizontal; Vertical

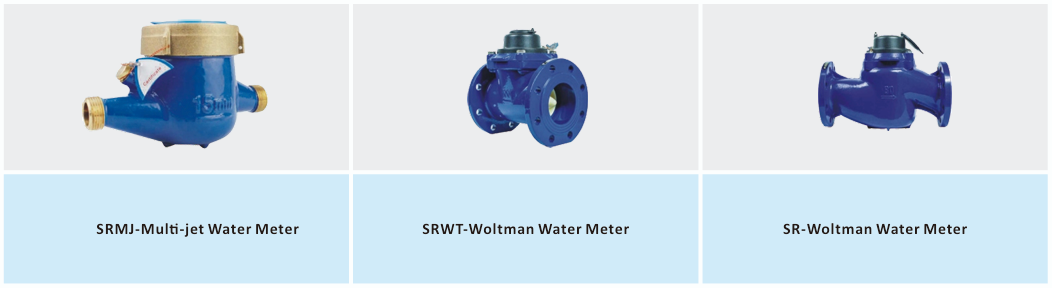

PRODUCT SERIES
WORKING PRINCIPLE
The rotary wing or turbine water meter measures water fow by using the mechanical motion of a rotor (turbine) placed in the path of the flowing water. When water passes through the meter, the flow of water causes the turbine to rotate.
The speed of rotation is proportional to the volume of water passing through the meter. This rotation is mechanically transmitted to a counting mechanism, which displays the total volume of water that has flowed through the meter.
Features
Dry magnetic transmission for clear and reliable readings
Large flow capacity with low pressure loss
Vacuum-sealed, anti-condensation counter
High Accuracy and R factor
Replaceable measuring mechanism for easy maintenance
Durable rust-resistant construction
Application
lrrigation of Farmland
Agricultural Greenhouses
Livestock Farming
Factory Water Use
Wastewater Treatment
Residential Communities
Apartments
Manufacturing Industry

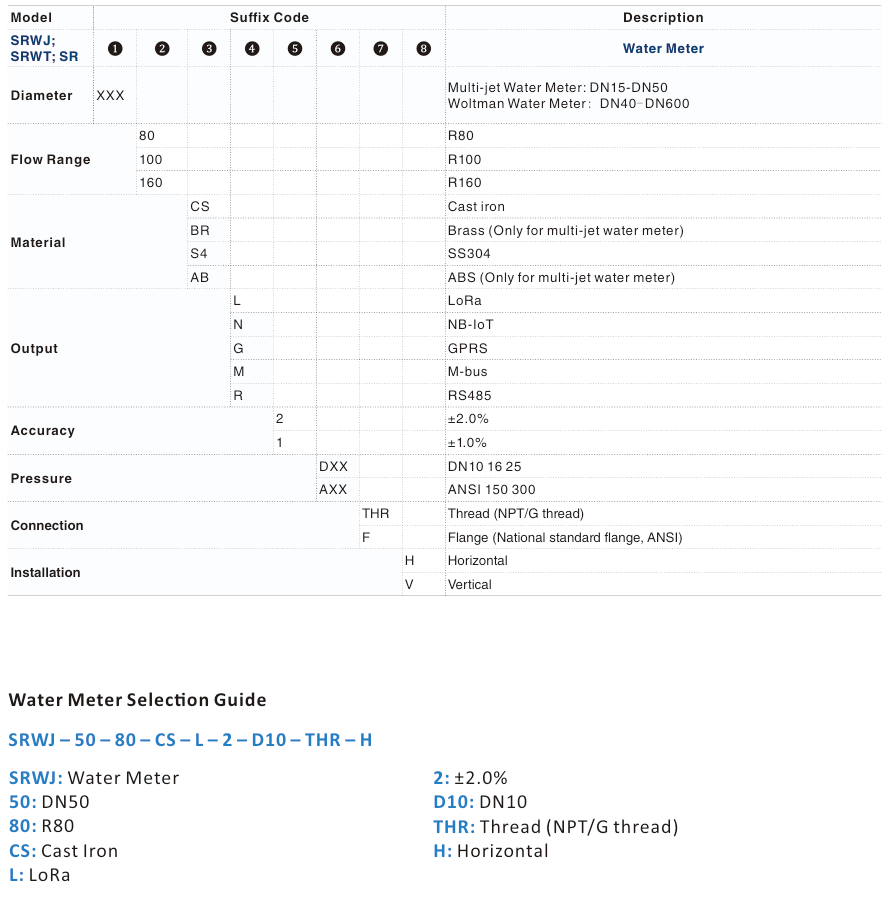

Model Selection

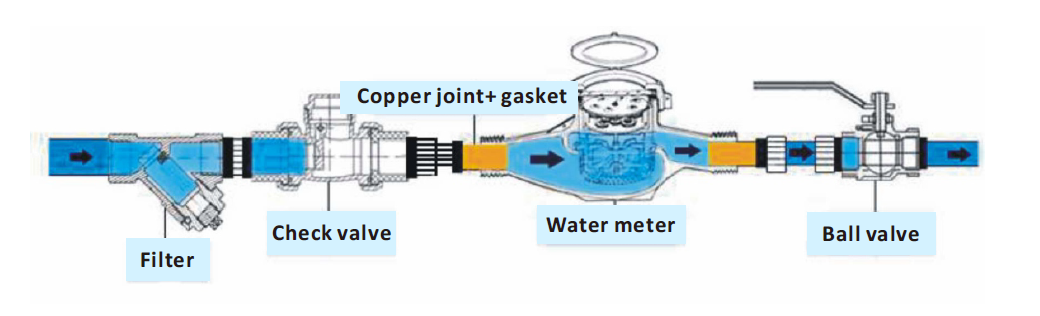

Installation
