ST Series Ultrasonic Flow Meter

这里可以自定义设置
ST Series Ultrasonic Flow Meter

Flow Range: 0.1 m/s~5.0 m/s

Accuracy: ±2.0%(0.3m/s~5.0m/s)

Repeatability: 0.8%

Pipe Size: OD9.53 ~ OD110 (DN6-DN100)

Data Storage: Flow rate, Flow velocity, net totalizer, single totalizer, day/month/year totalizer

Analog Output: 4~20mA, Maximum load: 600Ω

Alarm Output: OCT, Upper and lower limit alarm function (optional)

Communication: RS485, support Modbus RTU protocol

Power Supply: 24 VDC @3W

Cable Length: 2.0m (up to 20m)

Keypad: Four light touch buttons

Screen: OLED 128*64 display screen

Units: m³/h, LPM, GPM, LPH

Totalizer: 7 bit digit

Piper Material: Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe

Case Material: Aluminum alloy

Environment Temp. : -10℃~50℃

Medium Temp. : Compact: -100℃~50℃; Remote: -10℃~70℃/120℃ as optional

Environment Humidity: 0-95% relative humidity, without condensation

Protection: IP54/IP65

Viscosity: <300CST(m㎡/s)

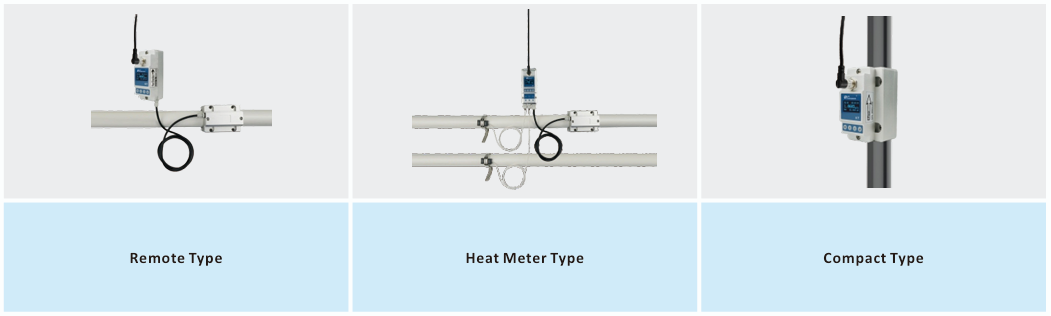

PRODUCT SERIES

WORKING PRINCIPLE

This Ultrasonic Flow Meter adopts the time-diference measurement principle. The ultrasonic waves emitted by the sensor in a fluid, the flowing in the propagation direction of acoustic wave propagation velocity downstream increases, decreases the upstream direction, have different propagation distance in the same transmission time, measure the flow rate according to the difference of the transmission time and the fluid flow velocity.

When the ultrasonic signal is transmitted through the flowing liquid, there will be a difference between the upstream and downstream transit time (travel time or time of flight), which is proportional to flow velocity, according to the formula below.

FEATURES

-With the world's most advanced time measurement chip (time resolution of SOps),

has developed a new generation of stable ST series "Easy Test" flow meters.

-The flow meter is stuck on the outside of the tube, no additional pipe changes are

required.

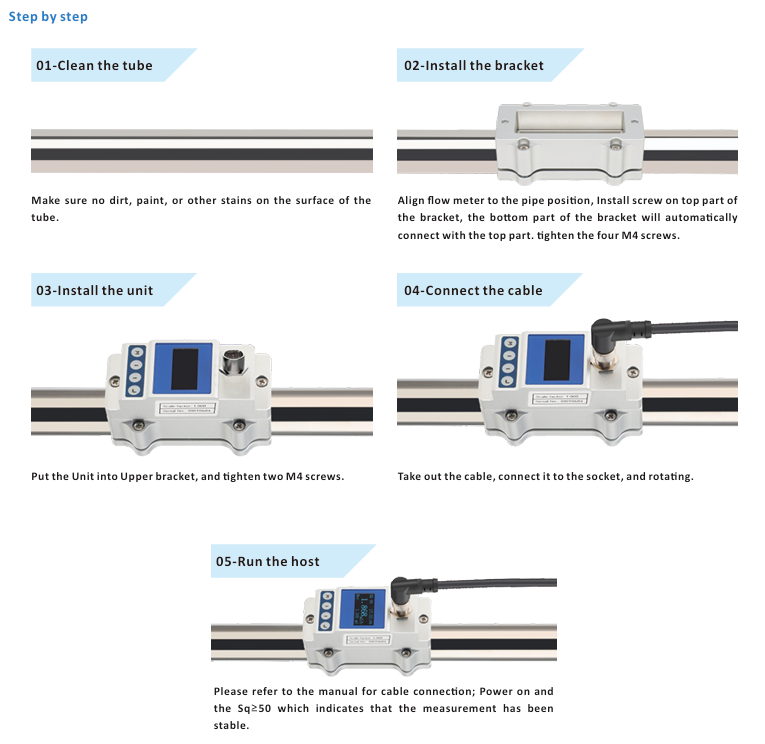

-No expertise required, installation and measurement can be done according to the

operating instructions.

-No moving parts, no pressure loss, can be installed without stopping production.

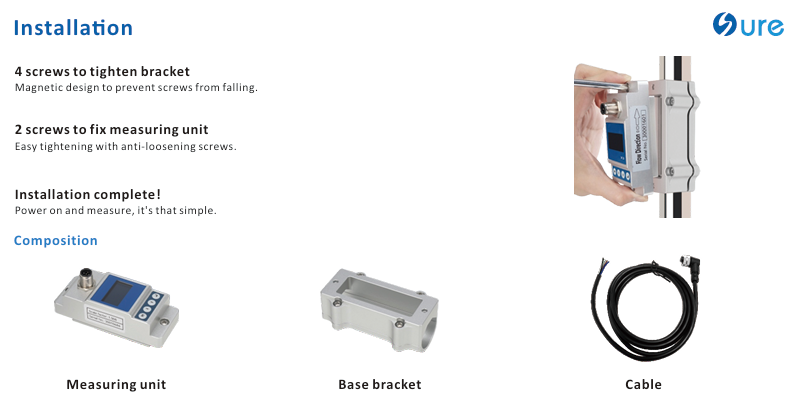

-Clamp on type, No need to cut the pipe or changes pipe line.

-No need for training, installation and measurement can be done based on the guide

ModelST
Flow Range0.1 m/s~5.0 m/s
Accuracy±2.0% (0.3m/s-5m/s)
Repeatability0.8%

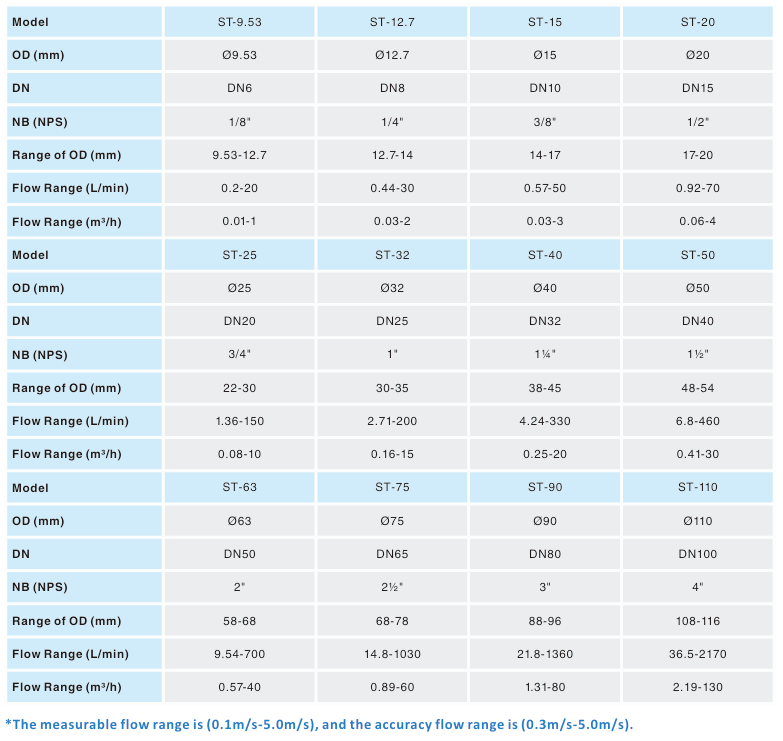

Pipe SizeOD9.53 ~ OD110 (DN6-DN100)
Data StorageFlow rate, Flow velocity, net totalizer, single totalizer, day/month/year totalizer
Analog Output4~20mA, Maximum load: 600Ω
Alarm OutputOCT, Upper and lower limit alarm function (optional)
CommunicationRS485, support Modbus RTU protocol
Power Supply24 VDC @3W
Cable Length2.0m (up to 20m)
KeypadFour light touch buttons
ScreenOLED 128*64 display screen
Units

m³/h, LPM, GPM, LPH

Totalizer7 bit digit
Piper MaterialStainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
Case MaterialAluminum alloy
Environment Temp.0℃~50℃
Medium Temp.Compact: -100℃~50℃ Remote: -10℃~70℃/120℃ as optional
Environment Humidity0-95% relative humidity, without condensation
Protection

IP54/IP65

Viscosity<300CST (m㎡/s)
