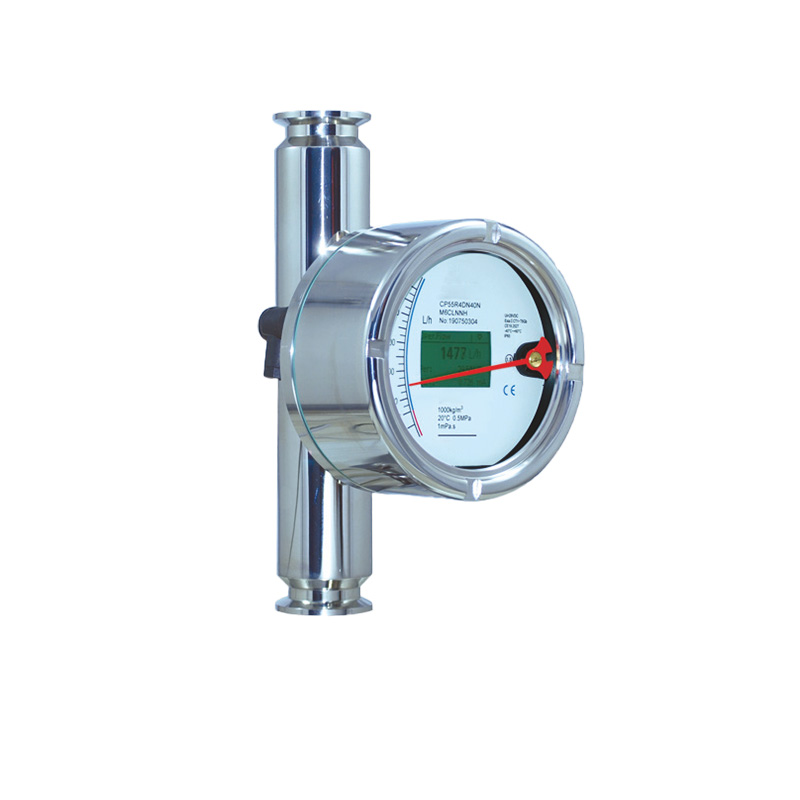

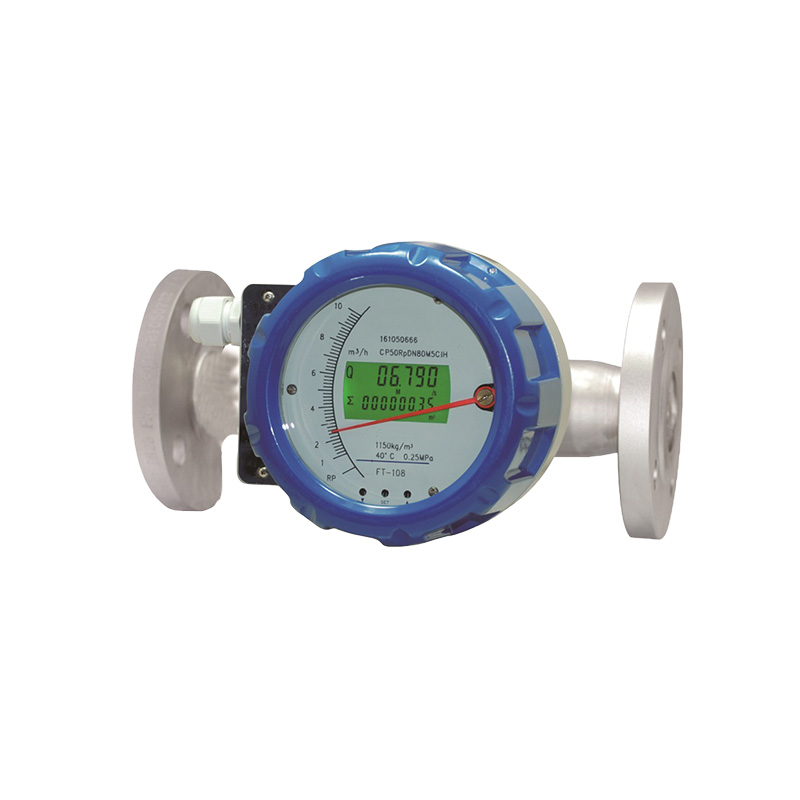

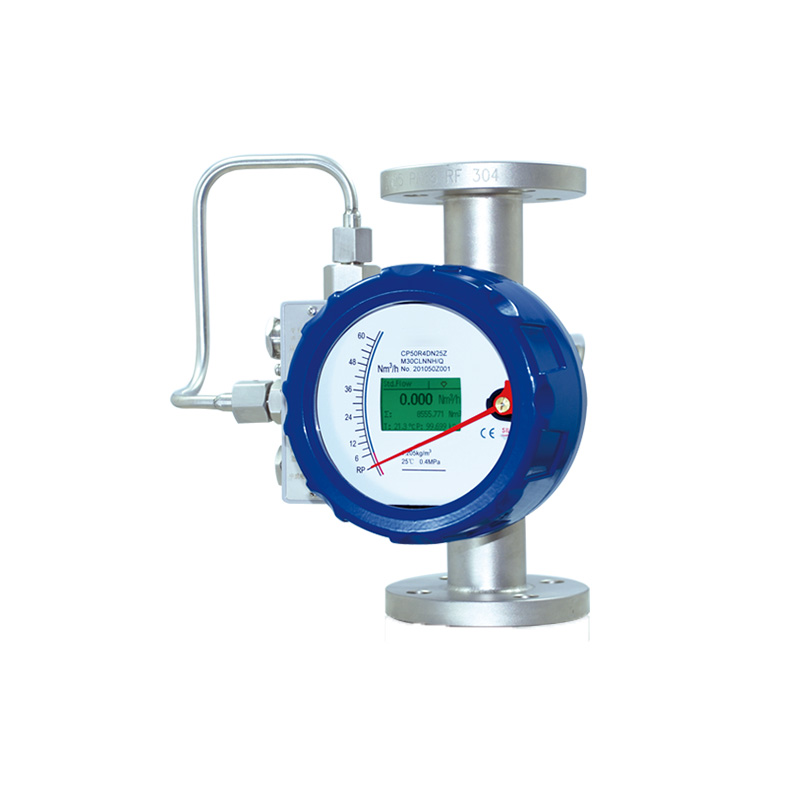

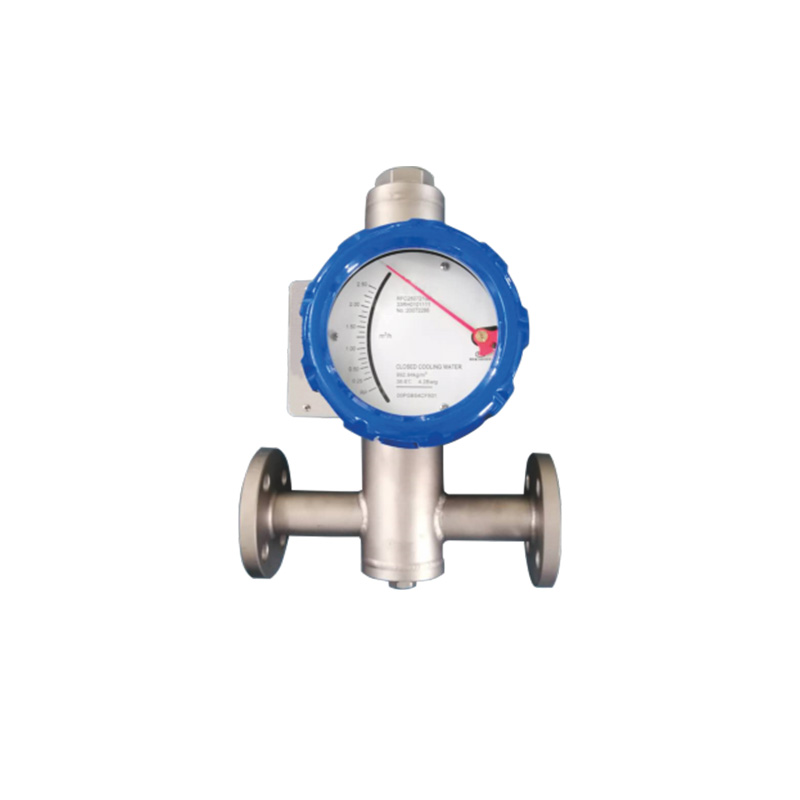

SH250-Variable Area Flow Meter

这里可以自定义设置
SH250-Variable Area Flow Meter
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Place of Origin: Tianjin, China

Brand Name: Sure Instrument

Application range: Gas; Liquid; Steam

Turndown ratio: 10:1

Accuracy: ±1.0%; ±1.5%

Connection: Thread; Tri-clamp; Wafer; Flange

Signal output: 4-20mA, Pulse and Modbus RS485

MOQ: 1set

Payment: T/T, LC, PayPal, West Union

Standard Lead Time: 7-10 working days

Shipment: FedEx, DHL, Airline, Sea and others

Package Details: Carton and Wooden


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

Description

The variable Area Flow meter is an instrument for measuring the flow of liquids or gases in pipelines. It includes a vertical tube through which the fluid flows whose diameter increases from the bottom to the top and a float which can move vertically in the tube. As the flow increases this float moves to a higher position until its resistance to the fluid flow is balanced by th?float's buoyed weight in the fluid, a value which is constant and independent of the flow rate. The position of the iloat is a measure of the flow rale. The flow rate values can be read on a scale.

Feature

-Mechanical display and LCD display
-Robust and universal
-The short-stroke design allows the measurement of high flow
rate using a relative short metering tube
-Special application is for hazardous, dangerous or aggressive
fluid, for high temperature and high pressure rates
-All stainless steel design provides a safe measurement of a
variety of liquids, gases and sleam- The measuring section
can be equipped with a heating jacket
-Standard rotameter is mounted in a vertical pipeline with flow
direction upwards

APPLICATION

- Gas supply equipment
- Electric power
- Petroleum
- Chemical
- Metal
- Medical

PRODUCT APPLICATION

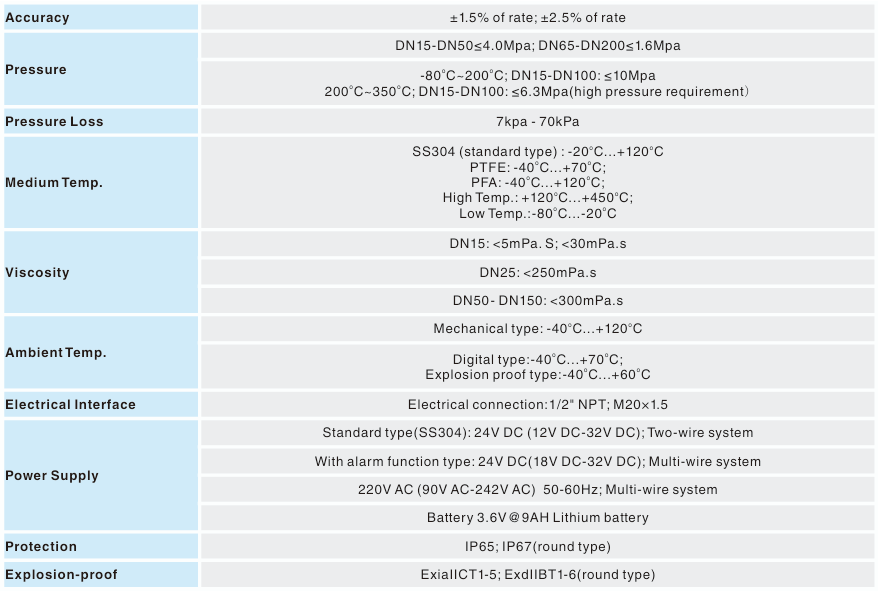

TECHNICAL DATA

Application Range

(1)Gas;(2)Liquid;(3)Steam

Turndown Ratio

10:1

Accuracy(Refer to the accuracy on the   nameplate)

±1.0% & ±1.5% &± 2.5%

Temperature

Max. Process Temperature

T1 level:150℃

T2 level:300℃

T3 level:350℃

Pressure

Nominal Operating Pressure

DN15{aspcms:sitetitle}.DN50:4.0Mpa

DN65{aspcms:sitetitle}.DN200:1.6Mpa

Max. Pressure Rating

DN15:32Mpa; DN25:25Mpa;DN50:20Mpa

DN80:10Mpa;DN100:6.4Mpa

DN125{aspcms:sitetitle}.DN150:4.0Mpa

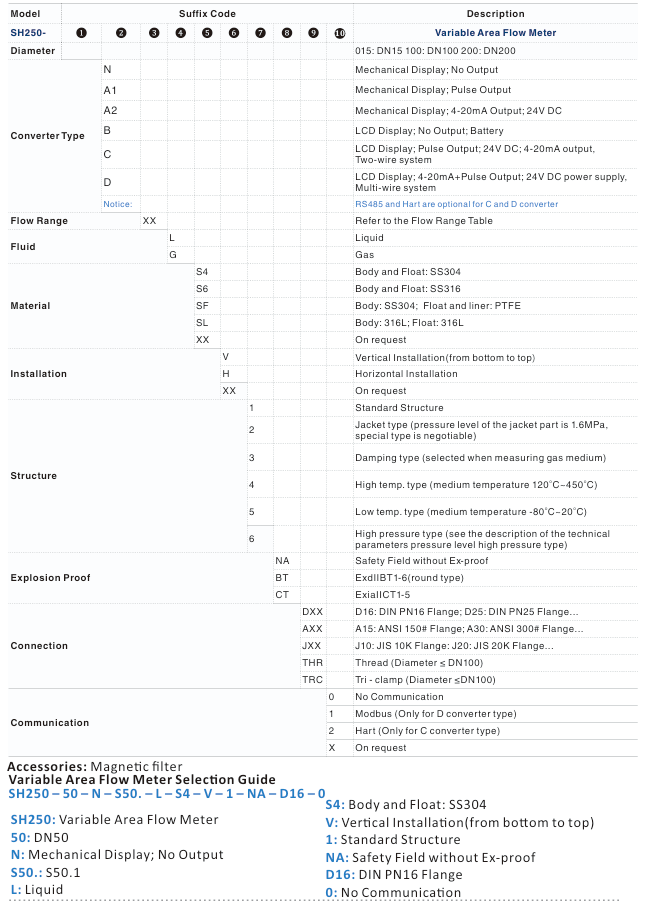

MODEL SELECTION

Model

SH250

Description

Diameter

XXX



















015: DN15

100: DN100

200: DN200

Power Supply

N

















Mechanical Display; No output

A1

















Mechanical Display; 0-1000Hz Output

A2

















Mechanical Display; 4-20mA Output; 24V DC

B

















LCD Display; No Output; Battery

C

















LCD Display; Pulse Output; 24V DC

D

















LCD Display; 4-20mA + Pulse Output; 24V DC power supply

Notice

















RS485 and Hart are optional for C and D converter

Reset Function

Y















Yes

N















No

Flow Range

XX













Refer to the Range Table

Fluid

L











Liquid

G











Gas

Material

S4









Body and Float: SS304

S6









Body and Float: SS316

SF









Body: SS304; Float: PTFE

XX









On request

Installation Way

H







Horizontal Installation

V







Vertical Installation

Structure

1





Standard Structure

2





Heat Insulation

3





Damper for gas measurement

4





High Temperature

5





High Pressure

Explosion Proof

NA



Safety Field without Ex-Proof

BT



Exd II BT4

CT



Exib II CT4

Connection

DXX

D16: DIN PN16 flange; D25: DIN PN25 …

AXX

A15: ANSI 150# flange; A30: ANSI 300#…

JXX

J10: JIS 10K flange; J20: JIS 20K …
