Mini Electromagnetic Flowmeter

这里可以自定义设置

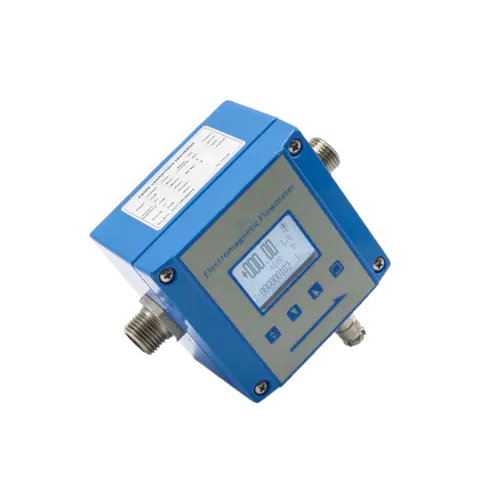

Mini Electromagnetic Flowmeter
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Nominal diameter: DN3~DN20

Electrode material: 316L, Hb, Hc, Ti

Lining material: PEEK

Dielectric conductivity:≥10μS/cm, softened water 20μS/cm

Flow range: 0.3m/s ~10m/s

Package Details: Carton and Wooden


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

FEATURES

1. Compact design suitable for liquids from 10uS/cm;
2. Compact and low cost;
3. Easy installation and less maintenance;
4. Minimum flow rate can be as low as 5L/h;
5. Optional temperature sensor integrated is available;
6. Bi-directional measurement with independent total counters;
7. Empty pipe detection is integrated;
8. PEEK liner and optional EPDM seals are available for hygiene measurement;
9. No movable parts, no mechanical wear and tear;
10. Threaded connection for easy installation;
11. Easy operation and various outputs are available;
12. DC 24V powered with or without display.

READ MORE

PRODUCT DISPLAY

TECHNICAL DATA

Nominal diameterDN3~DN20
Electrode material316L, Hb, Hc, Ti
Lining materialPEEK
Dielectric conductivity≥10μS/cm, softened water 20μS/cm
Accuracy level±0.5%R~±1.0%R
Flow range0.3m/s ~10m/s
Ambient temperature-10℃ ~ 60℃
Measuring temperature-20℃~100℃
Nominal pressure0.6MPa~1.6MPa
Protection levelIP65、IP67(Blind)
Installation formCompact
Shell materialAluminum with epoxy
ConnectionThreaded, G1/2, G3/4, NPT 1/2 or others, SS304/SS316
Output signalFrequency/pulse, MODBUS-485 communication
Operating voltage24VDC±20%(19.2V-28.8V)
Current Consumption< 150mA
Dimension(H×W×D)150*100*70 (mm)
