Operating Principle

Fluid entering the meter first passes through an inlet flow straightener that reduces its turbulent flow pattern. Fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field generated by the meter's magnetic pickup, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional to volumetric flow.

Description

The liquid turbine flow meter in the series LWGY are specially designed for usage in water, diesel, gasoline and other fluid measurement and control systems. They operate according to the turbine principle, i.e. the speed of an impeller turning in the fluid flow is measured and converted into pulse or 4-20mA signals

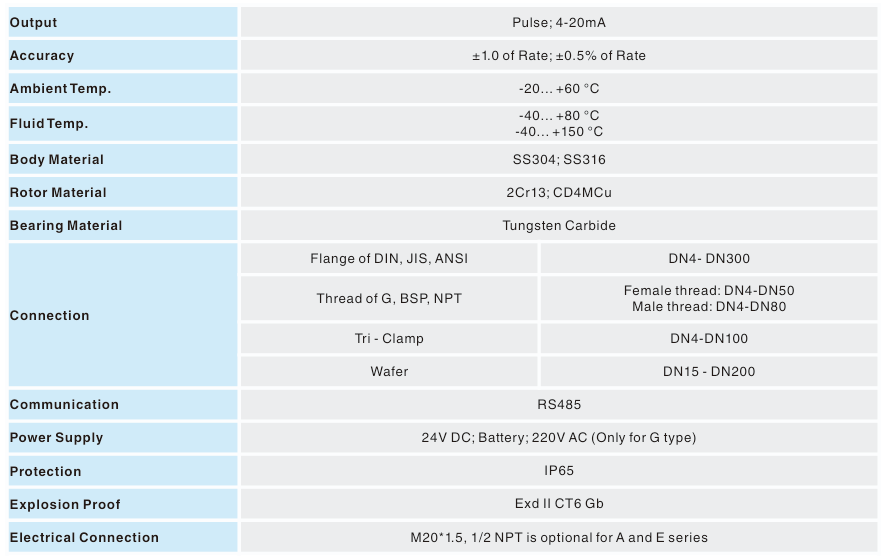

Technical Data
-Output: Pulse; 4-20mA
-Accuracy:±1.0 of Rate;±0.5% of Rate
-Operating Temp.: -2O..,+6O℃
-Fluid Temp.: -2O...+ 15O℃
-Body Material: SS304; SS316
-Rotor Material: 2Cr13;CD4MCu
-Bearing Material: Tungsten Carbide

APPLICATION

- Petrochemical/energy industry
- Hydraulic/lubrication system
- Oil / gas industry
- Test systems
- Distilled water
- Clean water
- Food and beverage industry

PRODUCT APPLICATION

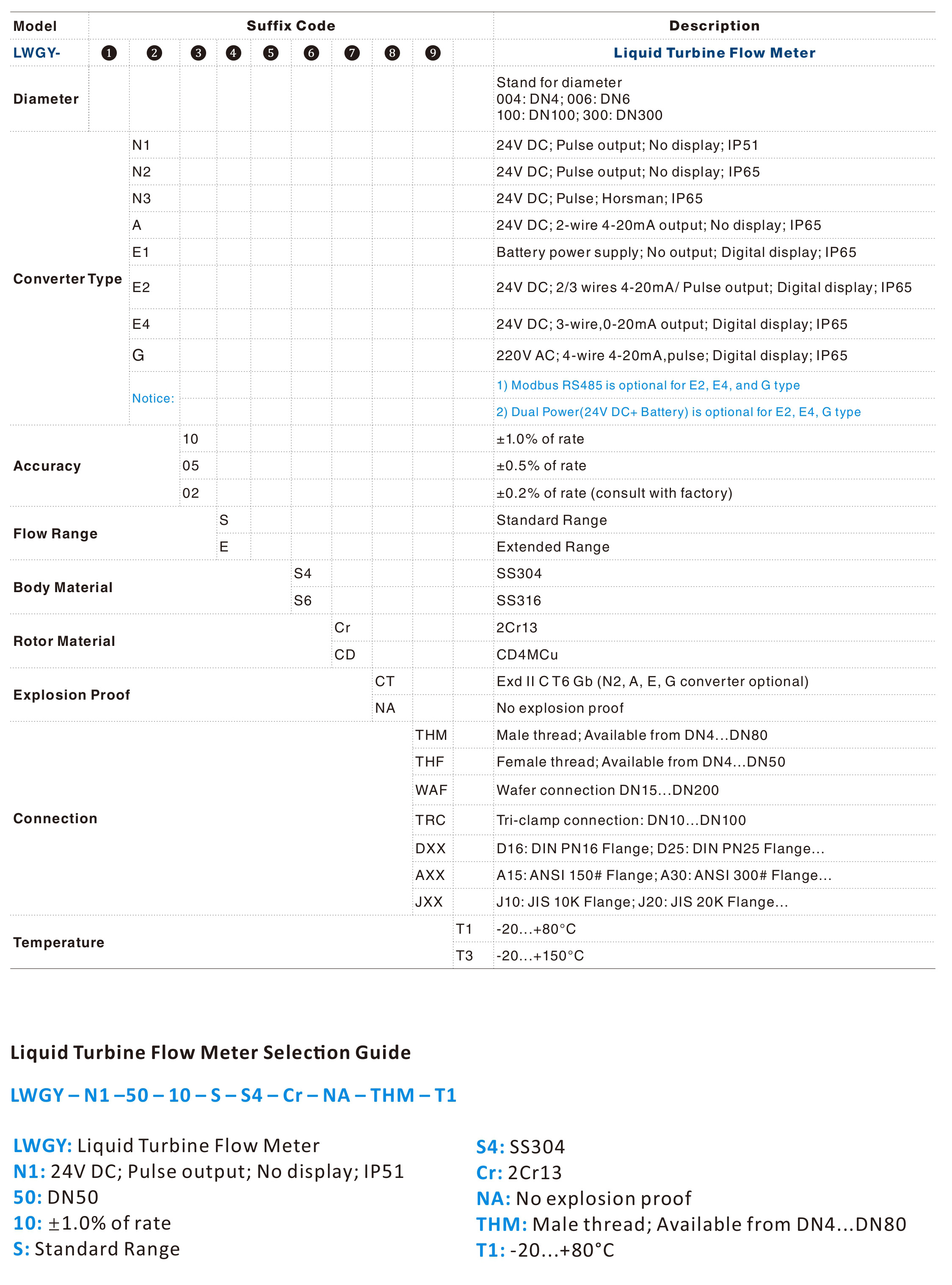

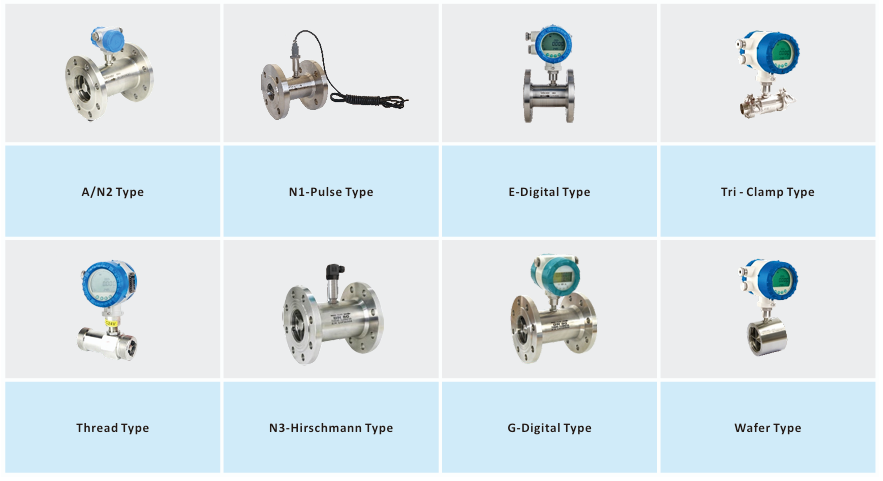

MODEL SELECTION

Model

Suffix Code

Description

Diameter

XXX

















Stand tor diameter

004: DN4: 006: DN6

DN4-DN200

Converter Type

N1















24V DC; Pulse output; No display

N2















24V DC; Pulse output;No display; Ex

A















24V DC; 4-20 mA output; Nodisplay; Ex

E1















Battery power supply; No output; Ex; Digital Display

E2















24V DC; 2-wire 4-20mA output;Ex; Digital Display

E3















24V DC; Pulse output; Ex;Display

E4















24V DC; 0-20mA output; EX; Digital display

E5















24V DC; 3-wire 4-20mA / Pulse output; EX; Digital display

M















220Vac; 4-20mA output; EX; Digital display

FE















FE:Fluidwell E series converter

FF















FF:Fluidwell F series converter

Notice:















1)Modbus RS485 is optional for E2,E3,E4,E5 and M type

2)Dual Power(24VDC+Battery) is optional for E2,E3,E4,E5,G

Accuracy

10













±1.0% of Rate

05













±0.5% of Rate









Flow Range

S











Standard Range

E











Extended Range

Body Material

S4









SS304

S6









SS316

PL









Plastic (DN15-DN50)

Rotor Material

Cr







2Cr13

CD







CD4MCu

Explosion Proof

BT





Exd II BT6

NA





No explosion proof

Connection

THM



Male thread; Available from DN4 … DN50

THF



Female thread; Available from DN4 … DN50

WAF



Wafer connection

DXX



D16: DIN PN16 flange;D25: DIN PN25…

AXX



A15: ANSI 150# flange;A30: ANSI 300#...

JXX



J10: JIS 10K flange;J20: JIS 20K…

Temperature

T1

-20...+80 °C

T2

-20...+120 °C

T3

-20...+150 °C

Description

The sanitary liquid turbine flow meter is specifically designed for measurement of food liquids like milk, cream, juice of various fruits, pharma liquids etc. It is available with compact or remote version of transmitter can be in stalled either horizontally or vertically with a variety of optional end-fittings to meet your requirements.



Technical data

-DN4-DN100
-Viscosity from 1 to 10 cst
-Pressure resistant to 10 bar
-Communication: Modbus RS485

MODEL SELECTION

Model

Suffix Code

Description

LWS-

1

2

3

4

5

6

7

8

9

Sanitary Liquid Turbine Flowmeter

Diameter

XXX

















Stand for diameter
004:DN4;100:DN100

Converter Type

N1















24V DC;Pulse output;No display

N2















24V DC;Pulse output;No display;Ex

A















24V DC;4-20mA output;No display;Ex

E1















Battery power supply;No output;Ex;Digital display

E2















24V DC;2-wire 4-20mA output;Ex;Digital display

E3















24V DC;Pulse output;Ex;Digital display

E4















24V DC;0-20mA output;Ex;Digital display

E5















24V DC;3-wire 4-20mA/Pulse output;Ex;Digital display

G















110V-240V AC;4-20mA output;Ex;Digital display

FE















Fluidwell E series converter(Refer to page 23)

FF















Fluidwell F series converter(Refer to page 24)

Notice:















1)Modbus RS485 is optional for E2,E3,E4,E5 and "E"type















2)Dual Power(24V DC+Battery)is optional for  E2,E3,E4,E5 and G

Accuracy

10













±1.0% of rate

5













±0.5% of rate

Flow Range

S











Standard Range

E











Extended Range

Body Material

S4









SS304

Rotor Material

Cr







2Cr13

CD







CD4MCu

Explosion Proof

BT





Exd II BT6

NA





None

Connection

TRC



Tri-clamp for sanitary connection

Temperature Rating

T1

-20...+80℃

T2

-20...+120℃

T3

-20...+150℃

Description

Mini flow meter is based on turbine theory and designed for
measuring micro-flow. This meter has extremely high accuracy
especially under the condition of high temperature and high
pressure. The Electronic pulse transmitter is also integrated in
this min flow meter. It can maintain the 2% accuracy and 0.25%
repeatability・ Because of smart structure design, no debris can
store in the working process and it's clear after work.
-55*40*47mm dimension
-About 300g
-NSF, CE authentication
-Coffee machine application

TECHNICAL DATA

Tems

Diameter

mm

Measuring Range

(L/min)

K-Factor

(Ml/imp)

1.15

0.01-1.86

0.5

1.3

3.06-108

0.6

1.5

0.045-2.08

0.67

2.0

0.085-2.32

1.02

2.5

0.12-2.4

1.44

3.7

0.15-3.0

2.28

Pressure

Maximum 20.0bar

Temperature

-10°C to 100°C

Accuracy Level

±2%

Repeatability Accuracy

±0.25%

Connection

G1/4 female thread
       (ordered to meet need from customers)

Material Turbine

Shell: Green Brass(lead-free brass)

Bearing: INO*18/8(1.4305) stainless steel

PVDF (polyvinylidene fluoride)

Magnets: SrFeO ceramics
