Operating Principle

The operation of the International Gas Turbine Meter is based on the measurement of the velocity of gas The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing undesired swirl, turbulence and asymmetry before the gas flows lo (he turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.

The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.

Description

The Gas turbine flow meter in the secies LWQ are specially designed for use in natural gas. compressed, air and other fluid measurement.
And the volume and mass flow rate are available.

-DN25-DN400
-Temp.& Press, compensation
-Communication: RS485
-Connection: Thread / Flange
-Ten units are optional

APPLICATION

• Natural gas transmission and distribution network
• Petrochemical industry
• Urban gas industry
• Electric power industry
• Gas skids
• LNG gas station

ONLINE CONSULTATIO

PRODUCT APPLICATION

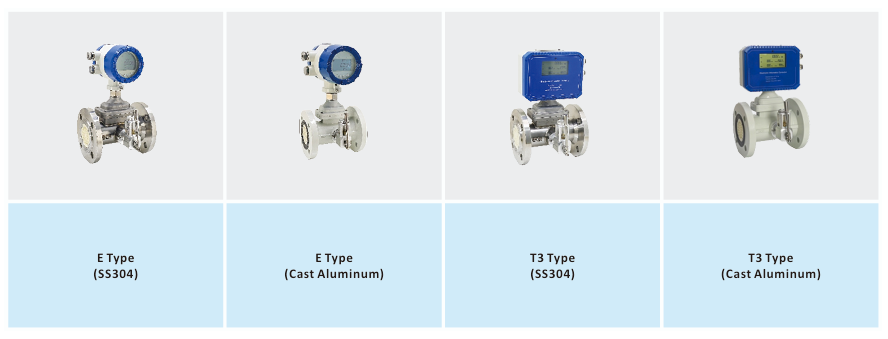

TECHNICAL DATA

Output Pulse (Depending on Converter Model)	Pulse
Output Pulse (Depending on Converter Model)	4～20mA
Accuracy	±1.0%ofRate ±1.5% of Rate
Operating Temperature	-20...+60°C
Fluid Temperature	-20...+80°C
Body Material Cast Aluminium	SS 304 SS 316 Body Material Cast Aluminium Cast Steel (D4:DN50-DN200)
Rotor Material	Aluminum alloy Plastic ABS
Bearing Material	SS304

MODEL SELECTION

Model	Suffix Code								Description
Diameter	XXX								Stand for diameter 020: DN20: DN050: DN50 100: DN100: 400: DN400
Converter Type		N							24V DC; Pulse output; No display
		A							24V DC; 4-20 mA output; No display; Ex
		E1							Battery power supply; No output; Ex; Digital display
		E2							24V DC; 2-wire 4-20mA output; Ex; Digital display
		E3							24V DC; Pulse output; Local display; Ex; display
		E4							24V DC; 0-20mA output; Local display; EX;Digital display
		E5							24V DC; 3-wire 4-20mA / Pulse output; EX; Digital display
		FE							Fluidwell E series converter
		FF							Fluidwell F series converter
		D1							24V DC; 2-wire 4-20mA output; Digital display; Temperature & Pressure Compensation
		D2							24V DC; 3-wire 4-20mA output; Digital display; Temperature & Pressure Compensation
		D4							24V DC; 4-20mA output; Modbus RS485; Digital display; Temperature & Pressure Compensation
		Notice:							1)Modbus RS485 is optional for E2,E3,E4,E5,D1,D2,D4
									2)Battery Power(24V DC+Battery) is optional for E2,E3,E4,E5,D1,D2,D4
									3)D4 is only cast steel available
Accuracy			10						±1.0% of Rate
Accuracy			15						±1.5% of Rate
Flow Range				S					Standard Range
Flow Range				E					Extended Range
Body Material					S4				SS304
					S6				SS316
					CA				Cast Aluminum
					CS				Cast Steel (Only for D4 Type)
Rotor Material						AB			ABS Plastic
Rotor Material						AA			Aluminum Alloy
Explosion Proof							BT		Exd II BT6
							CT		Exd II CT4
							NA		No explosion proof
Connection								THM	Male thread; Available from DN4 ... DN50
								THF	Female thread; Available from DN4 ... DN50
								DXX	D16: DIN PN16 flange; D25: DIN PN25…
								AXX	A15: ANSI 150# flange; A30: ANSI 300#...
								JXX	J10: JIS 10K flange; J20: JIS 20K…

LWQ-Gas Turbine Flow Meter
