LUGB-Vortex Flow Meter

这里可以自定义设置
LUGB-Vortex Flow Meter
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Place of Origin: Tianjin, China

Brand Name: Sure Instrument

Ambient Temp. : -10 - +50oC

Accuracy: for liquid: ±1.0%; for gas: ± 1.5%

Body material: SS304; SS316

Signal output: 4-20mA, Pulse and Modbus RS485

MOQ: 1set

Payment: T/T, LC, PayPal, West Union

Standard Lead Time: 7-10 working days

Shipment: FedEx, DHL, Airline, Sea and others

Package Details: Carton and Wooden


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

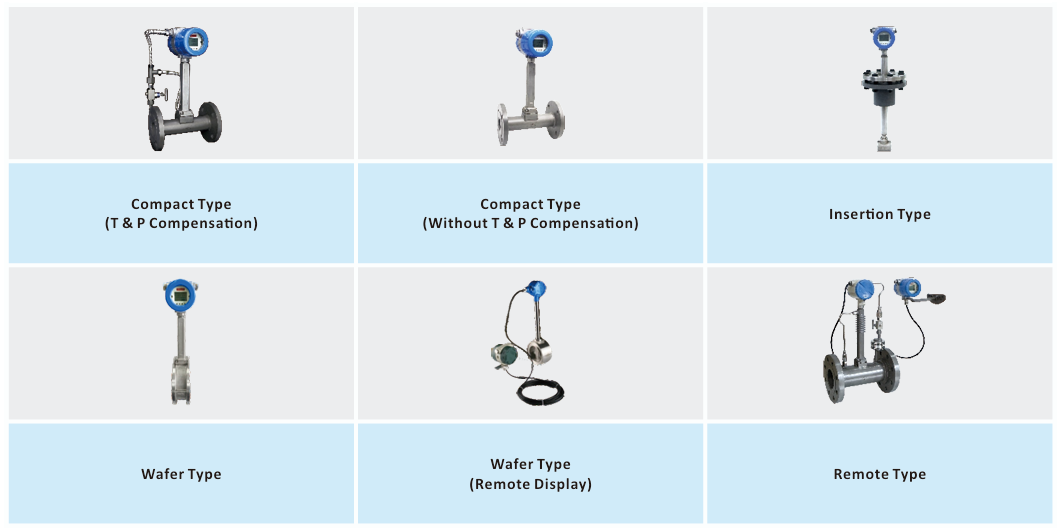

PRODUCT DISPLAY

Description

The vortex flowmeter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman vortex shedding street in the wake of a body built into the pipeline.
The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) in stalled perpendicular to the pipe axis. Vortex sheddi ng generates a so-called "Karman vortex street" with alternating pressure conditions whose frequency is proportional to the flow velocity.

APPLICATION

- Boiler industry( Steam measurement)
- Compressed air industry
- Textile industry
- Paper Industry
- Heating industry
- Metallurgical industry
- Plastics processing

PRODUCT APPLICATION

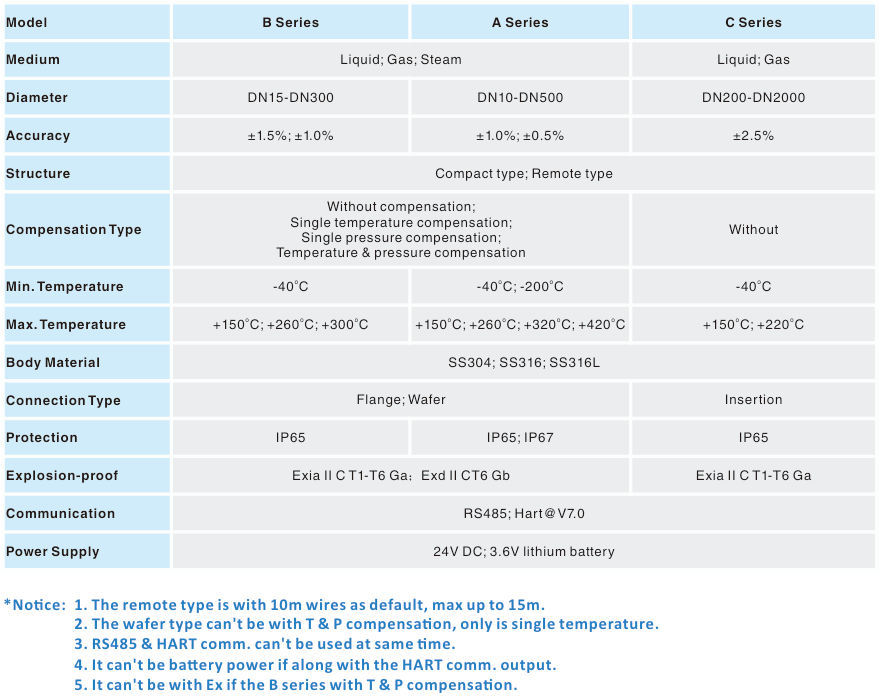

SPECIFICATION

Application Range

  1. Gas; (2) Liquid; (3) Steam

Measured Value

Primary Measured Value

Flow Rate

Secondary Measured Value

Volume flow (Pressure and Temperature is available)

Temperature

Process Temperature

T1 Level: -20℃…+100℃

T2 Level: -20℃…+250℃

T3 Level: -20℃…+350℃

T4 Level: -20℃…+420℃

Ambient Temperature

-10℃…+50℃

Pressure

EN 1092-1

DN200…DN300: PN10

DN100…DN200: PN16

DN15…DN80: PN25

Other pressure in request

ASME B 16.5

1/2”…8”: 150 Ib RF

Other pressure in request

JIS

1/2”…8”: 10K

Other pressure in request

Reference Condition

Flow conditions similar to EN 29104

Medium: Water/Gas/Steam

Temperature: -10℃…+30℃

Inlet Section: ≥10DN

Accuracy

For Liquid: ±1.0% of rate

For Steam and Gas:±1.5% of rate

Body Material

SS304

SS306

Converter Material

Standard: Polyurethane coated die-cast aluminum

MODEL SELECTION

Model

Suffix Code

Description

LUGB-

1

2

3

4

5

6

7

8

Vortex Flowmeter

Fluid

L















Liquid

G















Gas/Air

S















Steam

Diameter

XXX













Stand for diameter
015: DN 15; 050: DN 50; 100: DN 100; 300: DN 300

Structure

S











Compact type

L











Remote type

Converter Type

C









Fluid: liquid; 24V DC; 4-20mA/Pulse output; Digital display; Ex

V









24V DC; 4-20mA/Pulse output ( V type is only for Gas/Steam application ); Digital display; Ex

D









24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex

DB









24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex

DA









24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex

DV









24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex

Notice:

  1. Modbus RS485 is optional for C, V, D,DA,DB,DV series

  2. Dual power (24V DC+ Battery) is optional for C, V, D, DA,DB series

Body Material

S4







SS304

S6







SS306

Explosion Proof

BT





ExdIIBT6

CT





ExibIICT4

NA





No explosion proof

Connection

WAF



Wafer connection

DXX



D16: DIN PN 16 Flange; D25: DIN PN 25 Flange...

AXX



A15: ANSI 150# Flange; A30: ANSI 300# Flange…

JXX



J10: JIS 10K Flange; J20: JIS 20K Flange...

Temperature Rating

T1

-20℃…+100℃

T2

-20℃…+250℃

T3

-20℃…+350℃

T4

-20℃…+420℃
